CPV piston seals

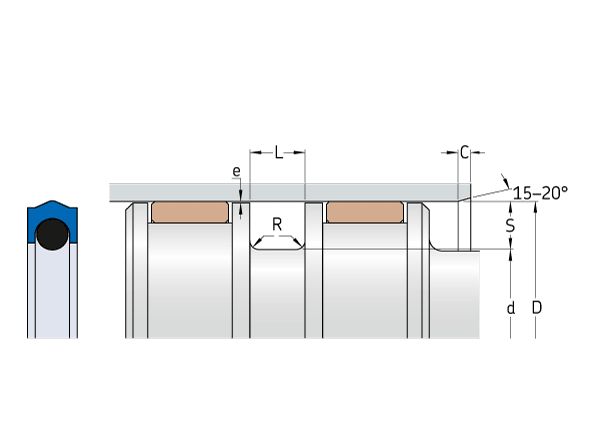

CPV seals are double-acting piston seals, the profile (fig. 4) have a polyester-based polyurethane (AU) slide ring. These profiles are developed for pressures up to 345 bar (5 000 psi) and suitable for light to medium duty applications. They are available in inch sizes where O-ring dash-number housings are used. For additional information, refer to CPV profile data.
